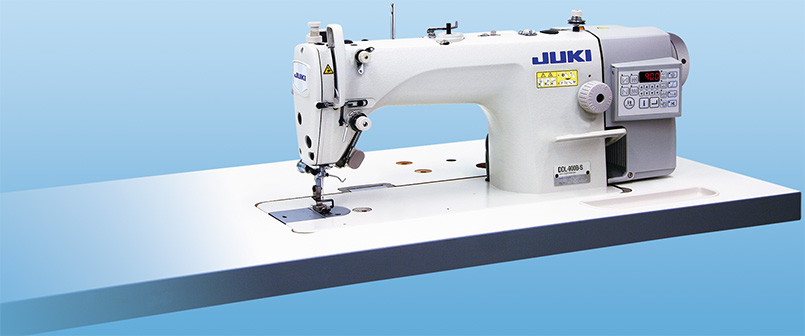

DDL-900B
Direct-drive, High-speed, 1-needle,Lockstitch Machine (“dry” oil pan system)
In order to prevent oil stains on sewing products, the sewing machine has adopted the “DRY” Oil Pan System which is integrated into the sewing machine bed. The needle bar is lubricated with a smaller quantity of oil as compared with the conventional model. In addition, oil which externally splashes is shielded by the newly-developed frame oil recovery mechanism and automatic oil circulation mechanism. The new structure contributes to the achievement of the maximum sewing speed of 5,000sti/min and also to increased productivity.
| Model Name | DDL-900BB-S | DDL-900B-S | DDL-900BB-H | DDL-900B-H |
|---|---|---|---|---|
| Application | Medium-weight | Heavy-weight | ||
| Max. sewing speed | 5,000sti/min | 4,000sti/min | ||
| Max. stitch length | 4mm | 5mm | ||
| Lift of the presser foot | By hand: 5.5mm / By knee: 13mm (max.) | |||
| Hook | By hand: 5.5mm / By knee: 13mm (max.) | |||
| Needle | DB×1 #11 (#9~#18) | DB×1 #21 (#20#23) | ||
