DSC-244U
DSC-245U
DSC-246U

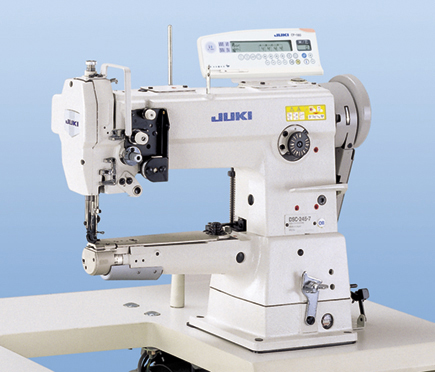

Cylinder-bed, 1-needle, Unison-feed, Lockstitch Machine

The unison-feed provides the optimal feed efficiency by feeding heavy materials smoothly and firmly.

The diameter of the cylinder is as small as ø46mm for a standard hook or ø50mm for a double-capacity hook. The small-diameter cylinder is quite helpful for handling bags, shoes, and other small articles smoothly and easily.

Model Name	DSC-244U(V)	DSC-245U(V), 245(V)-7	DSC-246U(V), 246(V)-7
Application	V type: attaching of piping tape
Max. sewing speed	2,200sti/min
Max. stitch length	6mm
Presser foot	By knee: 13mm, 15mm (without trimmer)		By knee: 14mm By knee: 15mm (without trimmer)
Alternating vertical movement	3.0~4.8mm
Needle	DP×17 (#18) #14~#21		DP×17(#21) #14~#23
Thread	#50~#20, B33~B69, Nm=120/3~40/3		#50~#8, B33~B92, Nm=120/3~30/3
